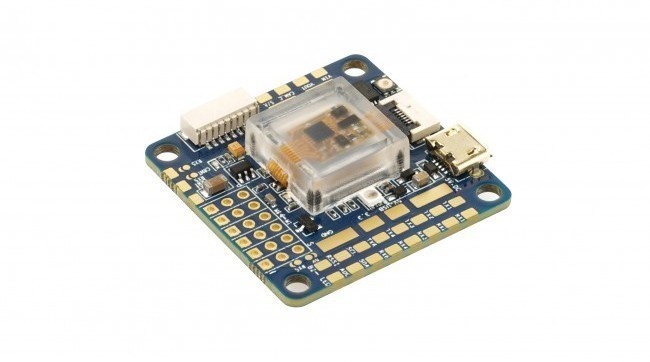

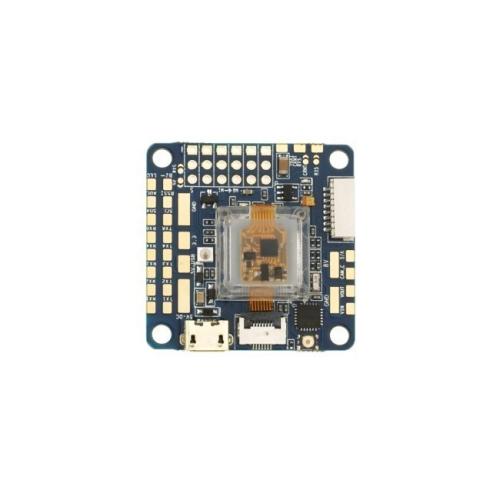

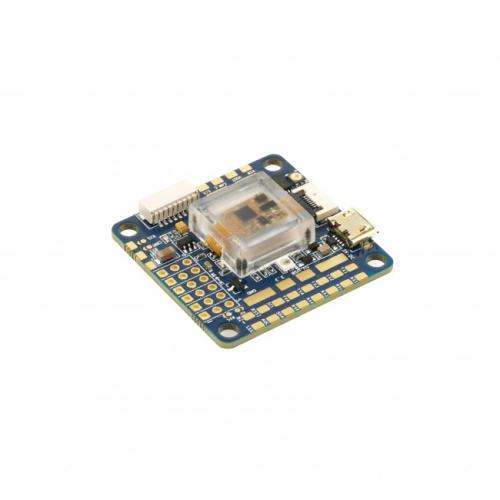

OMNINXT F7

The OmniNXT F7 is Airbot’s top of the range flight controller based on the newly designed NXT architecture. It uses the trusty MPU6000 Gyro with an additional ICM20608 on top. With the onboard damping box, the gyros run perfectly under 32k looptime. The NXT also comes with 2 different BECs, 6 UARTs and more exciting features.

MCU: STM32 F7
Gyro: Dual gyro – MPU6000 and ICM20608 (up to 32khz)
Power: VBAT 3-6S
Target:
OMNINXT7
SBUS Invertor: Yes
PPM: Use SBUS pin

ESC Telemetry: Yes
BEC: Dual BEC – 5V 1A, 8V 1A (filtered for FPV)
Betaflight OSD: Yes
4in1 ESC Header: Yes
Direct Camera Control input: Yes

Smart Audio input: Yes
Mounting Holes: 30x30mm (standard size)
Free UART ports: 6

AirBot 100% GENUINE
