Nano Photon V3 (130) frame

V3 updates:

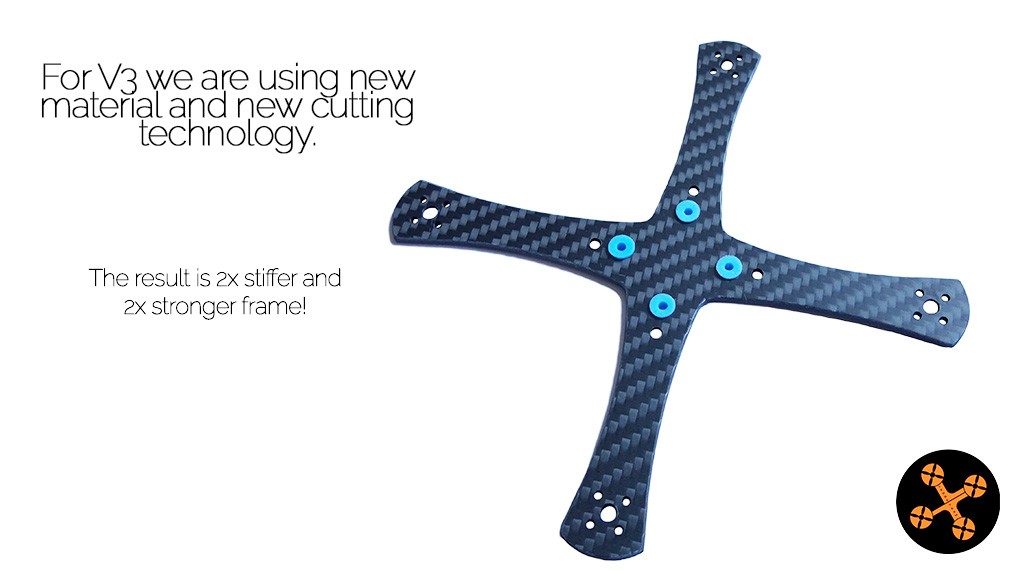

• New material with new cutting technology: 2x stronger and 2x stiffer!

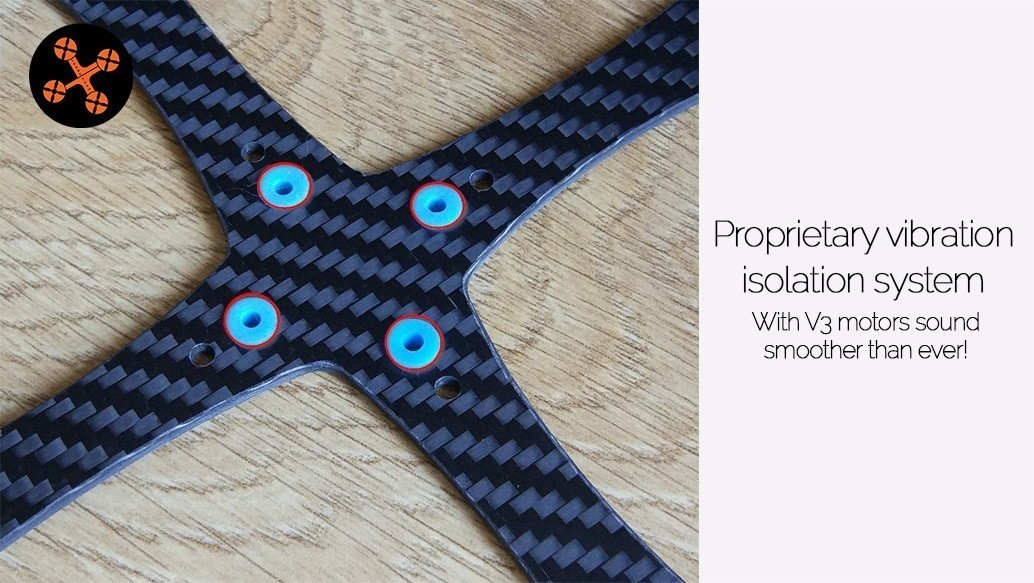

• Proprietary vibration isolation flight controller mounting.
• Improved flying experience.
• On V3 motors sound smoother than ever!

Nano Photon is the so called “winter project” by Ledge Team :)

• Who cares?
We started the project for ourselves to solve the problem with the cold winter days. We needed something small and light for safe flying in tight spaces... but still not that small, where the ‘feel” starts to fade. Could it be infront of our home, garage, parking lots, small yards… even inside the house :) Experience showed that as long as one has charged batteries, the Nano Photon is flyable almost everywhere! It suits those who want to fly all the not_so_flyable places :)

• So what?
Convenience! When something takes less effort, we are using it more often. That takes us to more fun, more time for ourselves, more flying hours and better skills!

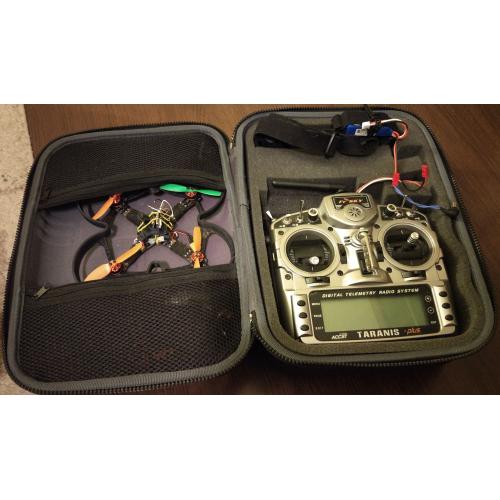

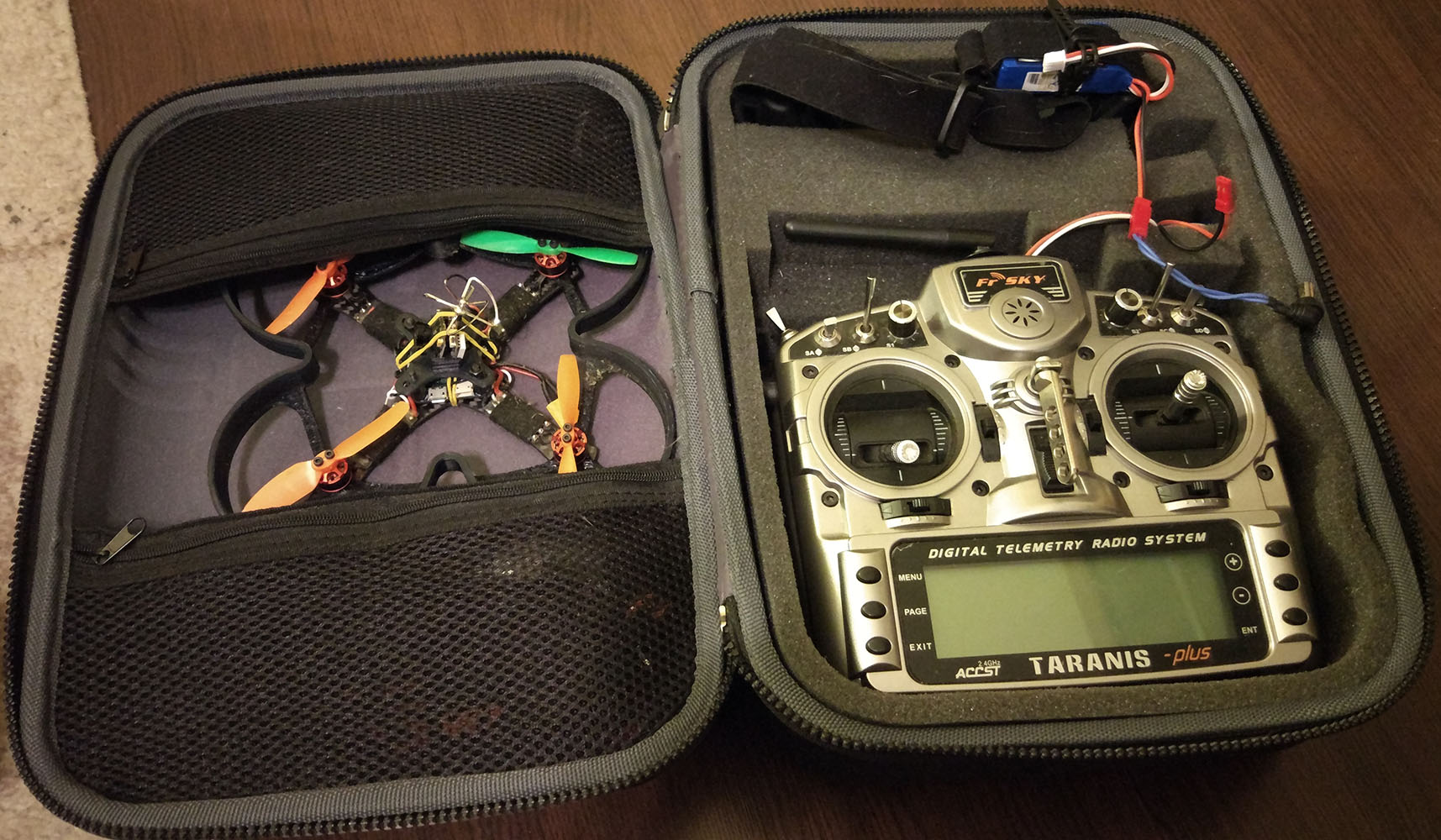

The whole package can fit in just one case and even better news – you don’t need to go to the “perfect” place!

• Where is my advantage?
- Fly when the weather is not suitable outside
- Get fun without the need to drive to a “flying spot”

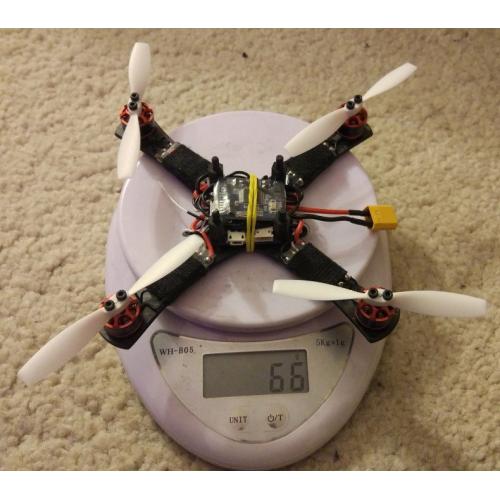

- Safety is way higher for nearby people and animals. Flying weight rarely can go above 100 grams. If you buy and mount the specially designed Prop Guards, even if you hit yourself in the balls, you will barely feel anyting (don’t ask how I know that).

- The lightweight build (no propguard) feels as dynamic and fast as a racing drone.

Specs:
Weight: 12.2gr
Size: 130mm
Material: 2mm Carbon Fiber
Mounting Holes (FC): 20mmx20mm and 35x35mm

Suggested build:
Motors: AOKFLY 1106 4000KV
ESC: Wraith32 Mini 25A
Flight Controller: Omnibus F3 nano
FPV: Foxeer Micro Arrow / Micro Predator
Batteries: 450mah 3S

Download suggested settings for the build

What is included:

- 1 piece Nano Photon Carbon Fiber frame
- 1 set nylon bolts/nuts for mounting a Flight Controller
