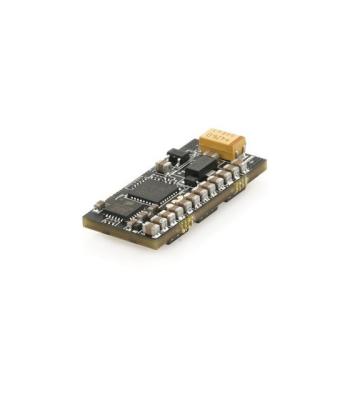

(35A) Airbot Wraith32 V2.2 BLHeli_32 (DSHOT, 32bit)

Изчерпана наличност
Код на продукта:
Airbot Wraith32 V2.2 35A BLHeli_32 (DSHOT, 32bit)
Наградни точки:
5/5 (2 отзива) Напишете отзив
Напишете отзив


Новото във V2:
- нов дизайн с повече филтриращи кондензатори (1800uF)
- светодиоди вече и от 2те страни

Wraith32 са едни от по-качествените BLHeli32 спийд контролери. Често надминават характеристиките на производителя.

Wraith32 са 32 битови BLHeli32 спийд контролери. Това е последната BLHeli генерация и носи най-високите до момента параметри, екстри и ъпдейти.
Wraith32 V2 имат и няколко допълнителни екстри:
- светодиоди от 2те страни (може да променяте цвета през blheli suite)
- токов сензор
- телеметрия (връща изразходван ток, температура, обороти)

- Рейтинг: 35A (full size mosfets)
- Входно напрежение: 2-6S
- BLHeli_32 firmware
- Oneshot / Multishot / DSHOT150/300/600/1200
- Вграден токов сензор
​- Вграден RGB Led (отзад и отпред)

Размер - 15x30mm


Original RCGroups Thread

BLHeli_32 is the third generation BLHeli code, following base BLHeli and BLHeli_S.

BLHeli_32 runs on an ARM 32bit MCU, initially it will be on a Cortex-M0 running at 48MHz, but there are MCUs out there that can run a lot faster.

So what can the increased MCU speed do?
First of all, it can run input signals with lower latency at faster rates.
Dshot up to at least Dshot1200, and at rates up to at least 32kHz is now supported.

Secondly it allows packing of more functionality.
- Like programmable pwm frequency, up to 48kHz, that can run motors even smoother, and also allows for moving of small but potentially disturbing humps in the throttle response. All ESCs have these bumps, with BLHeli_32 they can now be moved in the rpm range, to a place where the system has low sensitivity to them.

- Like auto timing. Which is not the option to choose if you’re after max power. But if you want the most efficient running with very good robustness against desync, it is the perfect choice.

- Like voltage and current limiting. Which is implemented in the code, and will be supported on some ESCs. Voltage limiting is desirable for fixed wing crafts. And current limiting adds protection against ESC failure.

- Like programmable brake on stop force. Which allows control of the braking of fixed wing props.

- Like improved direction change in bidirectional mode.

- Like more to come in the future. Such as setup from the FC by using Dshot commands. Such as telemetry functionality. There is room to grow performance and functionality.
